COSMOS INTERNATIONAL
Armature 300-20030
- SKU:
- C-50-67118
- Availability:
- Ask for lead time at: iglobalparts.com@gmail.com
Description

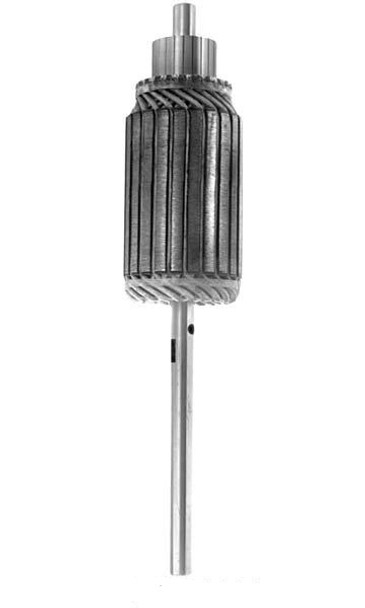

Armature
Replace OEM(s): Prestolite
For: Prestolite
Used On: Prestolite MEJ6001 Starters
Body OD: 2.913in / 74mm
CE Length: 24.8mm
CE Shaft OD: 0.626in / 15.9mm
CE To Bearing/Bushing Stop: 1.055in / 26.8mm
Comm Bars Count: 23 Bars
Comm Dia: 40mm
Condition: Remanufactured
DE Length: 175.8mm
DE Shaft OD: 0.626in / 15.9mm
DE To Bearing/Bushing Stop: 6.902in / 175.3mm
Ground: Ground
Lam Stack Length: 98mm
Lam Stack OD: 74.1mm
Lam Stack Thickness: 3.965in / 100.7mm
Length: 14in / 355.6mm
Notes 3: 3.965in / 100.7mmSet Screw & Keyway on DE
Rotation: CW
Shaft Type: Hole / 1 Keyway
Voltage: 12 Volt
Weight: 8.55 lbs / 3.88 kg
