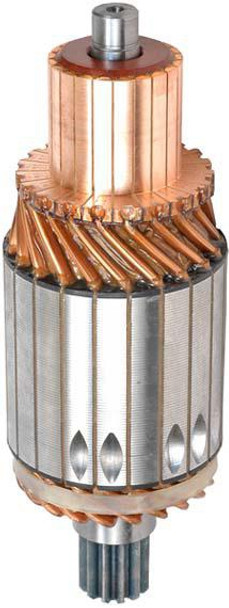

Armature 300-55001

Armature

Replace OEM(s): Komatsu, Sawafuji

For: Sawafuji

Used On: Sawafuji Starters on Komatsu Applications

Body OD: 2.957in / 75.1mm

CB Shaft Dia: 30mm

CE Length: 11.5mm

CE Shaft OD: 0.602in / 15.3mm

CE To Bearing/Bushing Stop: 0.559in / 14.2mm

Comm Bars Count: 21 Bars

Comm Dia: 44mm

Condition: New

DE Length: 61mm

DE Shaft OD: 0.992in / 25.2mm

DE To Bearing/Bushing Stop: 1.669in / 42.4mm

Gear OD: 26mm

Lam Stack Length: 70mm

Lam Stack OD: 75mm

Lam Stack Thickness: 2.74in / 69.6mm

Length: 8.622in / 219mm

Rotation: CW

Splines Count: 12 Splines

Splines Type: Straight

Voltage: 24 Volt

Weight: 7.2 lbs / 3.27 kg
