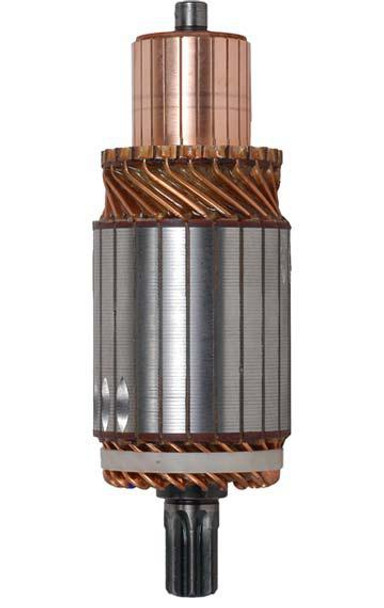

Armature 300-50007

Armature

Replace OEM(s): Nikko

For: Nikko 4.5KW OSGR Starters

Used On: Isuzu Lift Trucks, Trucks; Kobelco Equipment

Body OD: 2.37in / 60.2mm

CB Shaft Dia: 17mm

CE Length: 8.7mm

CE Shaft OD: 0.394in / 10mm

CE To Bearing/Bushing Stop: 0.441in / 11.2mm

Comm Bars Count: 23 Bars

Comm Dia: 35.6mm

Condition: New

DE Length: 49mm

DE Shaft OD: 0.669in / 17mm

DE To Bearing/Bushing Stop: 1.157in / 29.4mm

Gear OD: 15.8mm

Ground: Ground

Lam Stack Length: 65mm

Lam Stack OD: 59.8mm

Lam Stack Thickness: 2.61in / 66.3mm

Length: 7.106in / 180.5mm

Rotation: CW

Specification: 180mm OAL 8-Splines 17mm Shaft OD, Front Bearing 10mm Shaft OD, Rear Bearing

Splines Count: 8 Splines

Splines Type: Straight

Voltage: 24 Volt

Weight: 3.79 lbs / 1.72 kg
