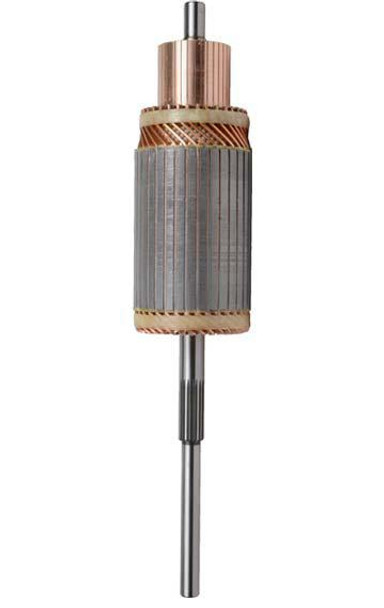

Armature 61-142 300-12008

(No reviews yet) Write a Review
SKU:
C-50-5010
Availability:
Ask for lead time at: iglobalparts.com@gmail.com
$392.79

Description

Armature

Replace OEM(s): Delco

For: Delco 50MT Series DD Starters

Used On: Delco 50MT Starters

Body OD: 3.783in / 96.1mm

CB Shaft Dia: 20.9mm

CE Length: 29.7mm

CE Shaft OD: 0.681in / 17.3mm

CE To Bearing/Bushing Stop: 1.122in / 28.5mm

Comm Bars Count: 35 Bars

Comm Dia: 59mm

Condition: New

DE Length: 232.5mm

DE Shaft OD: 0.622in / 15.8mm

DE To Bearing/Bushing Stop: 9.075in / 230.5mm

Gear OD: 21mm

Ground: Ground

Lam Stack Length: 131.6mm

Lam Stack OD: 96.1mm

Lam Stack Thickness: 5.181in / 131.6mm

Length: 19.031in / 483.4mm

Rotation: CW/CCW

Specification: 483mm OAL 19-Splines 15.80mm Shaft OD, Front Bushing 17.32mm Shaft OD, Rear Bushing

Splines Count: 19 Splines

Splines Type: Straight

Voltage: 32 Volt

Weight: 18.76 lbs / 8.53 kg
